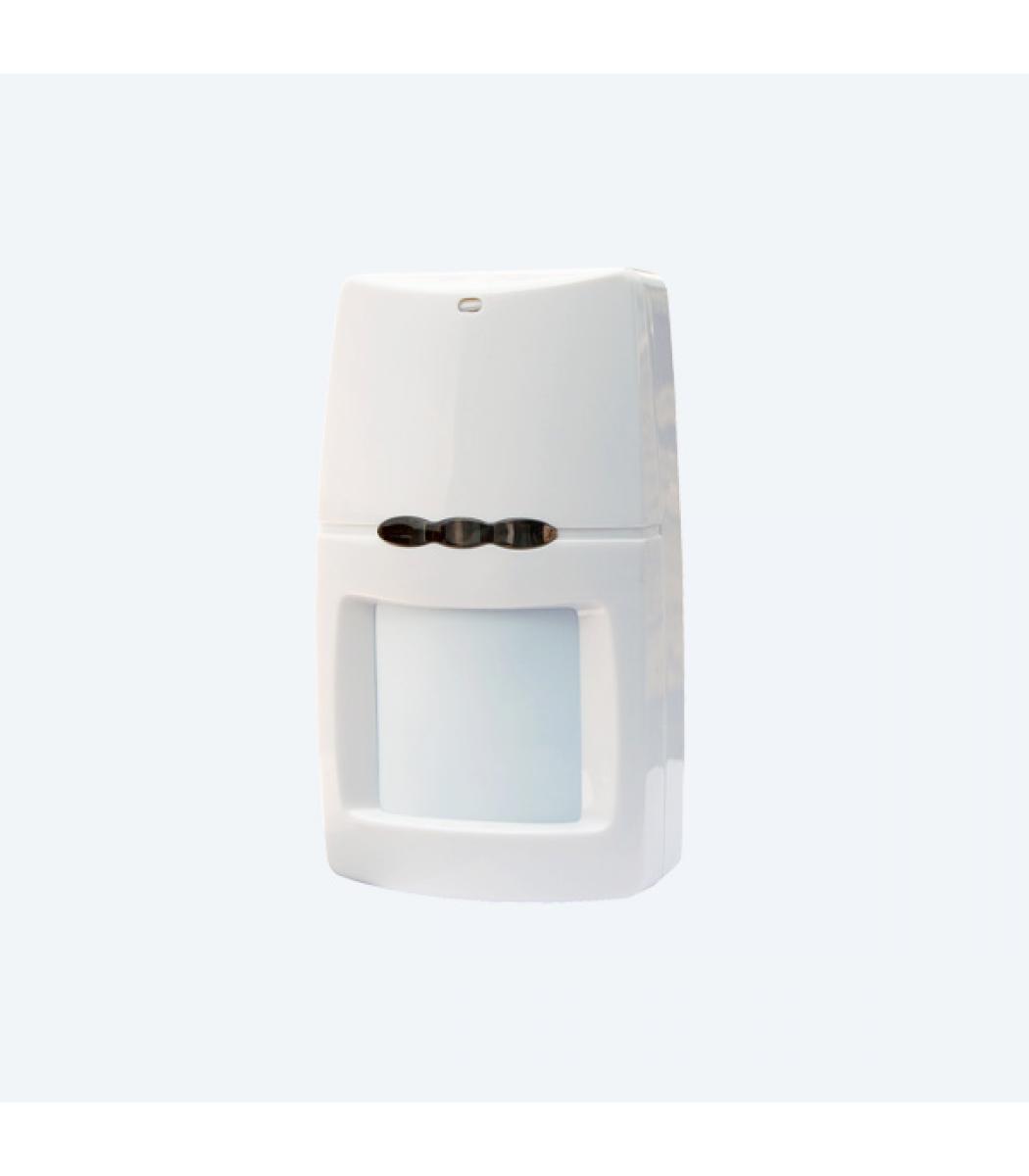

• Quad IS & MW compleksais kustību detectors
Pieejamība:
Uz pasūtījumu
Modelis:
DT-700
Ražotājs:
FOCUS
90.75€
Bez PVN: 75.00€
Nav vērtējuma Uzrakstīt atsauksmi
Introduction
◎ Adopts energy-saving logic processing(DMF), Advanced anti- cloak technology to recognize the intruder with cloak
◎ Random dynamic time segmentation(DMT) technology, pet-immunity up to 25kg
◎ Novelty and useful walking test mode, Microwave and Infrared respectively test.
◎ Detection distance: 12m @ 25℃

◎ Detection angle:110°

Model

DT-700

DT-700DMF

DT-700DMT

Detection

Quad infrared+MW

Quad infrared+MW

Quad infrared+MW

MW frequency

10.525GHz

10.525GHz

10.525GHz

Working voltage

9~16VDC

9~16VDC

9~16VDC

Working current

35mA@12VDC

35mA@12VDC

35mA@12VDC

Automatic Temperature Compensation

★

★

★

pulse counting adjustable

★

★

★

Status report

★

★

★

tamper alarm

★

★

★

Alarm output

N.C,500mA/30VDC

N.C,500mA/30VDC

N.C,500mA/30VDC

tamper interface

N.C,50mA/30VDC

N.C,50mA/24VDC

N.C,50mA/24VDC

pet-immunity



25kg

25kg

anti- cloak



Yes



Anti-white light

>8000LUX

>8000LUX

>8000LUX

Installation mode

Wall-mounted

Wall-mounted

Wall-mounted

Installation height

1.8m-2.4m

1.8m-2.4m

1.8m-2.4m

Dimension

119×71×42mm

119×71×42mm

119×71×42mm
