Pieejamība:
Uz pasūtījumu
Modelis:
IPC-HDBW81200E-Z
Ražotājs:
DAHUA
1 161.60
Bez PVN: 960.00€
Nav vērtējuma Uzrakstīt atsauksmi

>1/1.7” 12 Megapixel progressive scan CMOS
>Support H.264&MJPEG dual codec
>Max 15fps@12Mp(4000×3000),25/30fps@4K(3840x2160)
>DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>4.1mm ~16.4mm motorized lens
>Max. IR LEDs Length 50m
>IP67, PoE


ModelDH-IPC-HDBW81200E-Z
Camera
Image Sensor1/1.7” 12Megapixel progressive scan CMOS
Effective Pixels4000(H) x 3000(V)
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual, 1/3(4)~1/100000s
Min. Illumination0.05Lux/F1.4(Color); 0Lux/F1.4(IR on)
S/N RatioMore than 50dB
Video Output1 port
Camera Features
Max. IR LEDs Length50m
Day/NightAuto(ICR) / Color / B/W
Backlight CompensationBLC / HLC /DWDR
White BalanceAuto/Sunny/Night/Outdoor/Customized
Gain ControlAuto/Manual
Noise Reduction3D
Privacy MaskingUp to 4 areas
Lens
Focal Length4.1mm~16.4mm
Max ApertureF1.4
Focus ControlMotorized
Angle of ViewH: 106 ˚~ 32 ˚
Lens TypeMotorized/ Auto Iris(DC)
Mount TypeBoard-in Type
Video
CompressionH.264/H.264B/H.264H/ MJPEG
Resolution12M(4000x3000)/8M(4096×2160)/8M(3840×2160)/1080P(1920×1080)/720P(1280×720) /D1(704×576) /CIF(352×288)
Frame RateMain Stream12M(1~15fps)/8M(3840x2160) (1~25/30fps)
Sub StreamD1/CIF(1 ~ 25/30fps)
Third Stream1080P/720P/D1(1 ~ 25/30fps)
Bit RateH.264: 32K ~ 16Mbps
Audio
CompressionG.711a/ G.711u/ AAC
Interface1/1 channel In/Out
Smart Function(Optional)
Smart detectionTripwire
Intrusion
Scene change
Missing/Abandoned
Audio detect
Defocus detect
Face detect
Network
EthernetRJ-45 (10/100Base-T)
Wi-FiN/A
ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
ONVIFONVIF,PSIA,CGI
Max. User Access20users
Smart PhoneiPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory SlotMicro SD, Max 128GB
RS485N/A
Alarm1/1 channel In/Out
PIR Sensor RangeN/A
General
Power SupplyDC12V/AC24V, PoE (802.3at)
Power Consumption<24W (with IR on, motorized lens working)
Working Environment-30°C~+60°C, Less than 95% RH
Ingress ProtectionIP67
Vandal ResistanceIK10

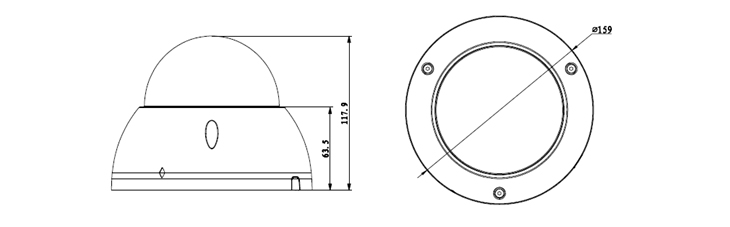

DimensionsΦ159mm×117.9mm
Weight1.1kg
